Condition: | New | Type: | Sprial Separator | Production Capacity: | high efficence |
Place of Origin: | Jiangxi China (Mainland) | Brand Name: | Yongsheng | Model Number: | 300-2400(size up) |
Voltage: | 380v | Power(W): | 1.1-4 kw (according to size ) | Dimension(L*W*H): | 3840x645x835(smallest size) |
Weight: | 690-2550Kg | Certification: | ISO9001/SGS/CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas | Application: | Ore benefication | Color: | Customized |
Installation: | Under technician's guidance | Voltage: | Customized |
Specifications
$detailView.getProductSearchDTO().getProduct().getSummary()

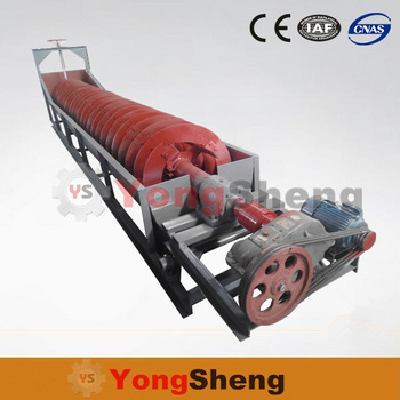

Spiral Classifier
Brief Introduction:
Spiral classifiers suitable for dewatering, de-medium,desliming and wet and dry classifying in mine.This machine
is mainly used in the production flow of metal processing, according to the difference in sedimentation rate of
mineral particales and mud,the ore with particle size 14-325 meshes can be classified, it also separate waste mud
or dewatering for the ore. According to liquid level the spiral classifier can be divided into high weir type sand
submersion type, The overflow weir classifier is higher than the center of the spiral axis at lower end, but lower than
the upper edge of the spiral blade. The length of liquid level is short, so its surface can directly gets the stirring
effect by the spiral blade, therefore it suitable for coarse particles classifications,usually the classified particle size
is over 0.15mm. The spiral blade of the submersion classifier at lower end completely submered under the liquid
level,the classifying area is big and smooth, suitable for classification for fine particle which is less than
0.15mm, its overflow productivity is higher.
Working principle
Different solid granularities have different gravity and thus have different dropping speed. The fine ore granularities
floating in the water will overflow and the big ones will sink to the bottom and discharge from the upper part by spiral
pushing. It can filter the granularities from the machine and then spin the rough particles to charging part by spiral
vane and discharge the fine granularities from the overflow pipe.
The base of the machine adopts channel steel material and the body adopts welded steel plate. The water inlet of spiral
axle and axle head adopt iron cover for wear proofing and long life operation. The lifting equipment has two types,
manual control and electric control.
Structure
The spiral classifiers consists of cell body(Frame), speed reducer(Gear Box), motor, central shaft & Screw,
spiral scatters, Weir & support parts. This machine is mainly combined with ball mill during working.
Application
Spiral Classifier is widely used in mineral processing plant to match with the ball mill and form a closed-circuit circulation
to process mining sand, or used in gravity mine selection plant for classifying sand and mine mud,
and grading sand according to the particle size, desliming , dewatering in the mine washing process. FG series Spiral Classifier
has simple structure, reliable operation, convenient operation,etc. The spiral classifier is a kind of classifying machine that adopts
the principle of settling speed difference according to different material sizes and specific gravity. fine particles floating in the
water overflow out; the coarse ore grain sinks to the bottom of the chase which will be pulled to the upper by the spiral and
discharging out.
Technical parameters
Model | Specification | Spiral Speed(r/m) | Dimension | Dip. Angle | Productive capacity | Diving Motor | Lift Motor | Weight (kg) | ||||
Length mm | Width mm | Over- flowing | Return- flowing | Model | Power (KW) | Model | Power (KW) | |||||
FLG-500 | Φ500 | 8.5~15.5 | 4500 | 555 | 14°~18°30’ | 32 | 143~261 | Y90L-6 | 1.1 | Manual | 1600 | |
FLG-700 | Φ750 | 4.5~9.9 | 5500 | 830 | 14°~18°30’ | 65 | 256~564 | Y132S-6 | 3 | Manual | 2900 | |
FLG-1000 | Φ1000 | 3.5~7.6 | 6500 | 1112 | 14°~18°30’ | 85 | 473~1026 | Y132M2-6 | 5.5 | Manual | 4400 | |
FLG-1200 | Φ1200 | 6 | 6500 | 1372 | 14°~18°30’ | 155 | 1170~1600 | Y132M2-6 | 5.5 | Y90L-4 | 1.5 | 8800 |
FLG-1500 | Φ1500 | 2.5~6 | 8265 | 1664 | 14°~18°30’ | 235 | 1140~2740 | Y160M-6 | 7.5 | Y100L1-4 | 2.2 | 11680 |
