- Place of Origin: Jiangxi, China (Mainland)
- Brand Name: YS

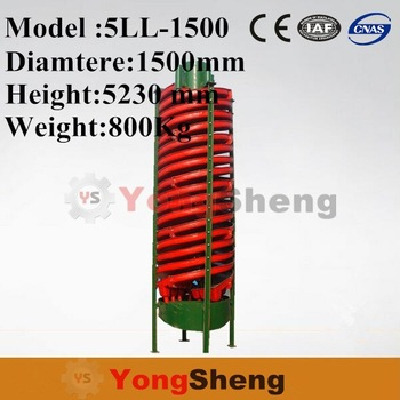

- Model Number: 5LL-1500
Quick Details
Condition: Used
Type: Gravity Separator
Production Capacity: 90%
Place of Origin: Jiangxi, China (Mainland)
Brand Name: Yongsheng
Model Number: 5LL-1500
Dimension(L*W*H): 1560*1560*5230mm
Weight: 800 kg, 800kg
Certification: CCC, CE
Warranty: 1 year
After-sales Service Provided: Engineers available to service machinery overseas
Diameter: 1500mm
Spitch: 540 or 720mm
Size of feeding ore: 0.3-0.02mm
Feeding density: 25-55%
Capacity per hour: 8-6tons
Overall size: 1560*1560*5230mm
MOQ: 20GP
Installation: under guidance
Keywords: Gold Miner Spiral Panning Equipment
Packaging & Delivery
| Packaging Details: | wood case or iron frames |
|---|
Models&Parameters:
Models&Parameters |
Model | 5LL-1500 | 5LL-1200 | 5L-900 | 5LL-600 | 5LL-400 |
Spiral diameter (mm) | 1500 | 1200 | 900 | 600 | 400 |
Starts | 4 | 4 | 4 | 2 | 2 |
Spiral Pitch | 540/720 | 900/720/540 | 675/540/405 | 450/360/270 | 240/180 |
Feeding size(mm) | 0.3-0.02 | 0.3-0.03 | 0.3-0.03 | 0.2-0.02 | 0.2-0.02 |
Feeding density(%) | 825-55 | 25-35 | 25-55 | 25-55 | 25-55 |
Capacity(t/h) | 8-6 | 4-6 | 2-3 | 0.4-0.8 | 0.15-0.2 |
Dimension(mm) | Length | 1560 | 1360 | 1060 | 700 | 460 |
Width | 1560 | 1360 | 1060 | 700 | 460 |
Height | 5230 | 5230 | 4000 | 2600 | 1500 |
Weight(Kg) | 800 | 600 | 400 | 150 | 50 |
Product description:

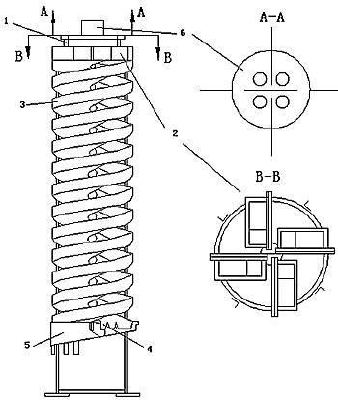

Spiral chute made of fiberglass which had combined features of spiral classifier, shaking table andcentrifugal concentrator. It was first invented in China in year of 1977 and taken as a revolution in gravity mining machine. From then on, spiral chute is widely used in ore mining&classification; generally speaking, it is ideal for mining of sea beach, river side, sand bank and stream. Weight of this machine is not too heavy, thus transportation cost is cheap. Further more, its machine body is fiberglass build which is antimoisture, anticorrosion and antirust. It can easily adopt to different raw material size, density, ore grade and feed volume.
Features:
1.Reasonable structure and small occupation area.
2. High recovery, high efficiency, and precise separation.
3. Light in weight, rust and corrosion resistant.
4. Simple installation and Minimal maintenance requirements.
5. Low operating cost and long operating life.
6. Reliable running with minimal operator attention.
7. Strong adaptability to fluctuation of feeding amount, density, size and grade.
