- Place of Origin: Jiangxi, China (Mainland)
- Brand Name: YS
- Model Number: RXT 1545
Quick Details
Condition: New
Type: mining washer
Production Capacity: 99%
Place of Origin: Jiangxi, China (Mainland)
Brand Name: Yongsheng
Model Number: RXT 1545
Voltage: 380V
Power(W): 30 Kw
Dimension(L*W*H): 1.5*4.5m
Weight: 6.9t, 6.9ton
Certification: ccc
Warranty: 3 year
After-sales Service Provided: Engineers available to service machinery overseas
Drum size: 1.5*4.5m
Screen size: >5mm
Size of feeding: <150mm
Water pressure: 0.4~0.5Mpa
Capacity (t/h): 80~130
Rotation speed(r/min): 18~22
Power: 30Kw
Name: Gravel Trommel Scrubber
Application: Trommel Screen
Packaging & Delivery
Packaging Details: | as customer's request |
---|
Delivery Detail: | Shipped in 30 days after payment |
---|
Energy Saving Mining Plant For Barite / Gravel Trommel Scrubber
Models&Parameters:
Model | Drum Size (m) | Screen size (mm) | Feeding size (mm) | Water pressure (Mpa) | Every ton of ore water required (M3/t) | Capacity (T/h) | Rotation speed (r/min) | Power (Kw) | Weight (Kg) |
RXT1030 | Φ1.0×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 30~50 | 25~28 | 15 | 4800 |
RXT1230 | Φ1.2×3.0 | ≥5 | ≤100 | 0.4~0.5 | 1.5~4 | 50~70 | 23~25 | 18.5 | 5800 |
RXT1545 | Φ1.5×4.5 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 70~120 | 18~22 | 30 | 6900 |
RXT1560 | Φ1.5×6.0 | ≥5 | ≤150 | 0.4~0.5 | 1.5~4 | 80~130 | 18~22 | 37 | 8300 |
RXT1845 | Φ1.8×4.5 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 90~130 | 20~21 | 45 | 11800 |
RXT1860 | Φ1.8×6.0 | ≥5 | ≤170 | 0.4~0.5 | 1.5~4 | 100~140 | 20~21 | 45 | 12800 |
RXT2060 | Φ2.0×6.0 | ≥5 | ≤210 | 0.4~0.5 | 1.5~4 | 120~160 | 19~20 | 55 | 14800 |
RXT2265 | Φ2.2×6.5 | ≥5 | ≤230 | 0.4~0.5 | 1.5~4 | 160~180 | 19~20 | 55 | 16500
|
Descriptions:

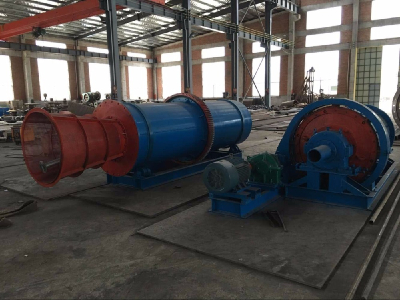

The rotary scrubber is an autogenous rotating drum scrubber, utilizing pebbles and rocks within the feed source to fracture and disintegrate clays, agglomerates and soft oxides. The scrubber spins slowly, similar to a giant washing machine. It churns the fines and oversize and water together, vigorously breaking up the soil matrix as well as liberating the target mineral from tough clay, schist’s and rock. Disintegrated material is homogeneously slurried within the drum, whilst the autogenous load is retained within the drum by reverse flights located at the drum discharge end. Slurry and washed oversize overflows the drum discharge throat to the concentric exit trommels.This material is then passed on to the downstream process equipment which can be in various forms such as centrifugal Concentrator, spiral chute, jig etc.
Features of Granite Rotary Scrubber:
Designed to break up alluvial gravels, clays and sand;
High capacity and high power scrubbing;
The long drum of the scrubber retains material for longer, more vigorous washing for complete separation;
Thickening type steel plate for the drum;
Heavy duty bearing, gear and roller;
Wearable screen at the exit of drum for screening;
One high output electrical motor driving a gear system providing efficient torque;
Adjustable rotary speed;
The water with high pressure flushed the inwall of drum;
Can accept material up to 230mm.
Working Principle:
The slurry material feeds into the drum where it is vigorously scrubbed, the soil matrix is broken up and the taaarget mineral is released. The material is then screened through the rotating screen and waste is ejected. The screened material is then passed on to the concentrating modules for upgrading.
